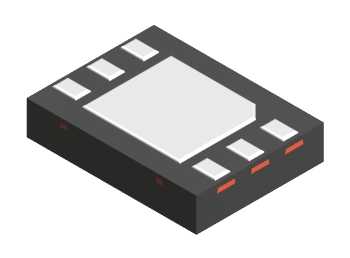

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 3.00 | mm | |
| Long Nom.: | 4.00 | mm | |
| Thickness: | 0.80 | mm | |
| Lead Frame | |||
| Material: | Cu A194 | ||
| Lead Finish: | SnAgCu | ||
| Pitch: | 0.8 | mm | |
| ydc06b Mechanical Drawing (88 Kbytes) |  View Online |
