DISCONE FIGURES

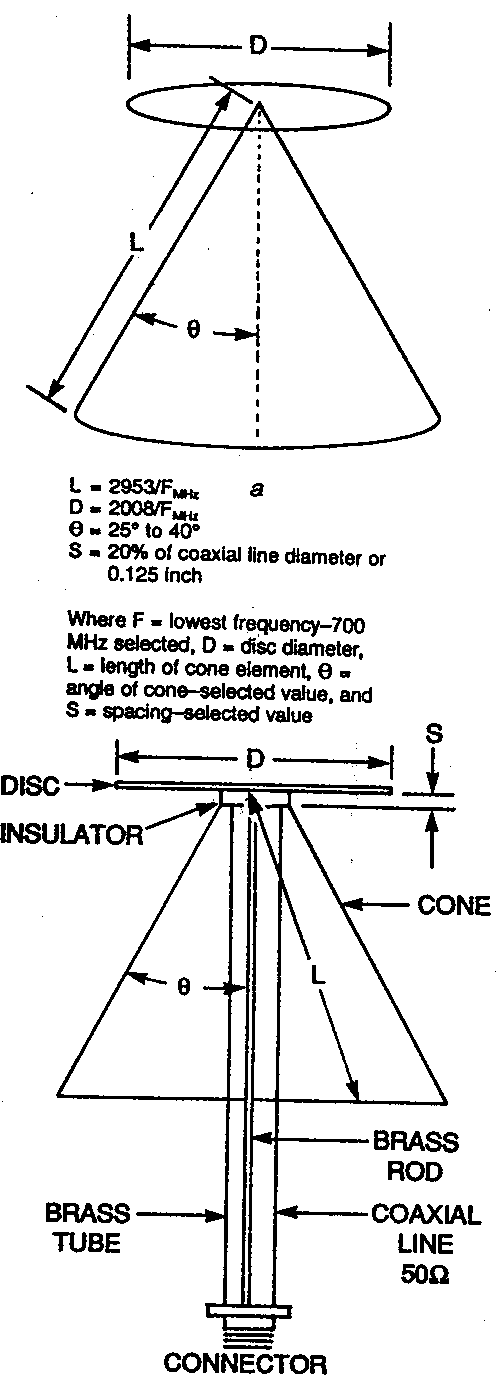

Fig 1 Discone Dimensions

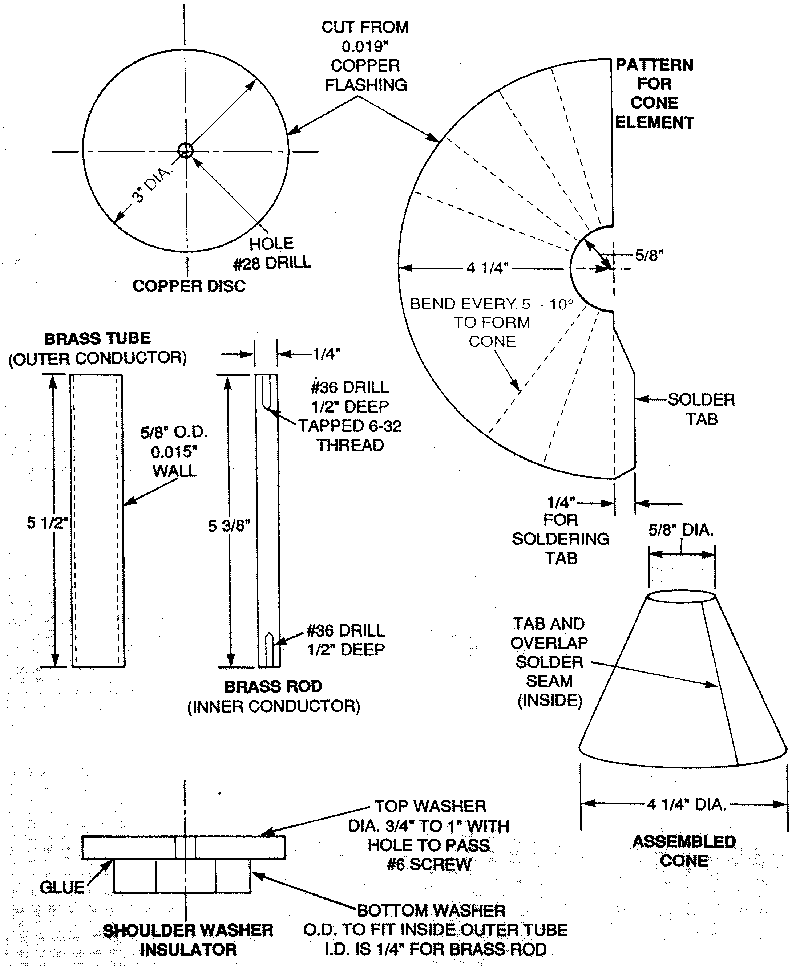

Fig 2 Discone Parts

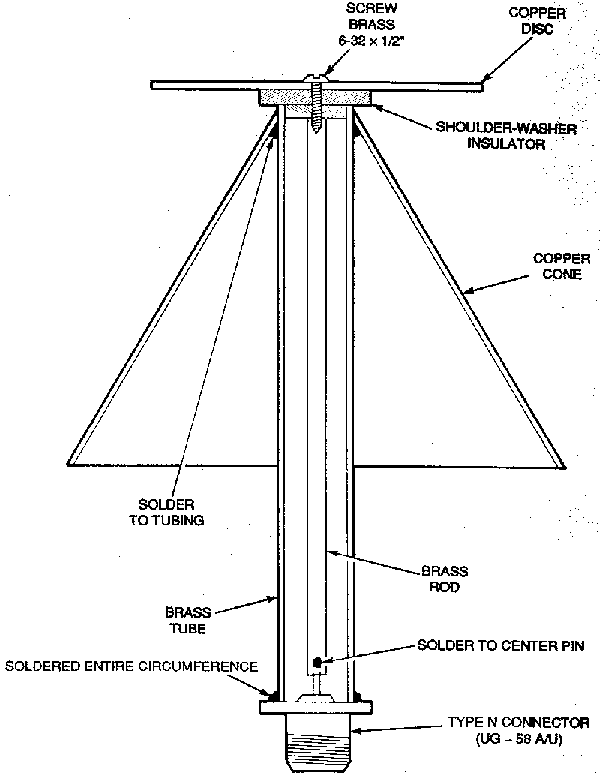

Fig 3 Discone Construction

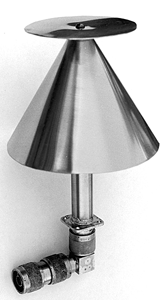

Fig 4 Photo of Discone
