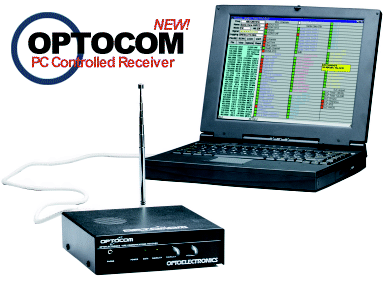

The
Optocom PC controlled communications receiver is ideal for recreational
or professional scanning applications. Compact design allows
the OptoCom to be connected to any laptop or tabletop PC for
high speed computer controlled scanning.
The Optocom is supported by many different scanning programs. |
|
|
|
|
|
|
|
|
Using
the new third party E-Trax software for DOS you can Trunk
Follow the GE/Ericsson EDACS system. E-Trax is not sold by
Optoelectronics.
Now you can also follow EDACS with Scan
Star Deluxe!
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
- High
Speed GRE triple conversion receiver
- Track
Motorola 400MHz, 500MHz, 800MHz, and 900MHz systems, as
well as conventional frequencies, simultaneously
- Trunk
Track EDACS systems using third party software
- Decode
CTCSS, DCS, LTR, DTMF, and Motorola talk group ID's
- Reaction
Tune with the Scout, Mini Scout or Super Scout frequency
recorder
- Software
controlled volume and squelch for remote control operation
- Introducing
STORE and SCAN, download up to 100 frequencies for scanning
away from the computer
- Supplied
with TRAKKSTAR software exclusively from SCANSTAR
- Trunk
Track LTR systems
|
|
 |
| The
CC50 carry case is ideal for transporting the OptoCom
and a laptop computer. Order the CC50 today. |
|
|
|
|
The Comcounter
reaction tune board
is useful for testing radios, to find out their frequency, and
tones. More...
|
|
|
|
 |
| Interface
with the Scout Frequency Recorder for Reaction Tuning
the OptoCom. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Frequency
Range
|
25-520MHz,
760-823.995MHz, 849.005-868.995MHz, 894.005-1300MHz (US
Version Cellular Blocked) |
| Sensitivity |
AM(20dB
S/N with 60% modulation)
2uV@25-520MHz, 760-1000MHz, 5uV@1000.005-1300MHz
NFM(20dB S/N at 3kHz deviation)
0.5uV@25-520MHz. 760-1000MHz, 3uV@1000.005-1300MHz
WFM(30dB S/N at 45 kHz deviation)
3uV@25-520MHz. 760-1000MHz, 10uV@1000.005-1300MHz |
| Selectivity |
AM:
-6dB@ +/-6kHz, -50dB@ +/-12kHz
NFM: -6dB@ +/-10kHz, -50dB@
+/-20kHz
WFM: -6dB@ +/-150kHz, -50dB@
+/-300kHz |
| Scanning
Rate |
Up
to 65 channels per second |
| IF
Rejection |
612MHz@770MHz(NFM)
/ 60dB, 612MHz@1000MHz(NFM) / 60dB
|
| Squelch
Sensitivity |
AM/NFM
Threshold
0.5uV@25-520MHz, 760-1000MHz, 3uV@1000.005-1300MHz
AM/FM Tight 25dB@25-520MHz,
760-1000MHz, 20dB@1000.005-1300MHz
WFM Threshold 3uV@25-520MHz,
760-1000MHz, 15uV@1000.005-1300MHz
WFM Tight 40dB@25-520MHz,
760-1000MHz, 40dB@1000.005-1300MHz |
| Antenna
Impedance |
50
Ohms |
| Power
Requirements |
AC
120 Volts, 60Hz, 18Watts
DC 9 -12 Volts, 10 Watts
AC90 Power Supply included |
| Audio
Outputs |
Headphone
Jack:
16mW
External
Speaker Jack:
1.8 Watts
Tape
Out Jack:
(Z=10Kohm) 600 mV Nominal
|
| Built-in
Speaker |
Audio
Output Power:
(10% THD) / 1.3 Watts Nominal |
|
|
|
|
|
