Colin's Software Page
Currently I am including here an RF propagation calculator, an audio WAV file to embedded code converter, a schematic capture program, and an IRC client. I have plenty of other interesting applications but they are either not yet ready for release, or are now obsolete... I hope to add more applications from time to time.
RFPROP
Description
RFProp is a Windows propagation calculator for the transmission path between an RF transmitter and a receiver. It is aimed mainly at free-space and space-wave applications, such as are encountered in VHF, UHF and microwave communications, and also in satellite communications. A knife-edge diffraction calculation is also included which when enabled allows the effects of a hill or other obstruction to be taken into account.

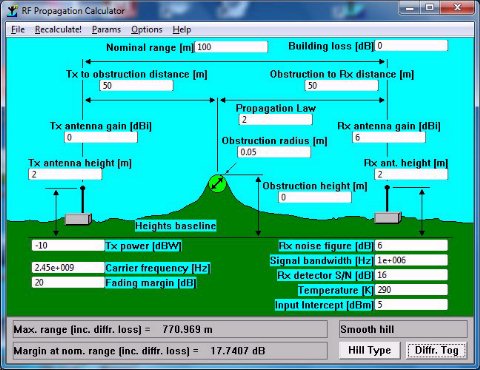

Click on the above for a larger image
Version 1.20
Updated March 20th, 2011
This updates RFProp with several improvements for better compatibility with Windows 7. It is intended for installation on Windows XP, Windows 7, or later operating systems.
Download
rfp120.zip [401KB]History
RFProp version 1.01 was initially distributed at the 1996 Radio Solutions Conference at the National Exhibition Centre, Birmingham, England, at which the author delivered a paper on spread spectrum radio. RFProp was part of a free promotional floppy disk handed out at the Central Research Laboratories stand in the industry exhibition associated with the Conference.
Older Versions
Version 1.10 (January 4 2004)
32 bit version of RFProp, with an improved NSIS installation program. Non-standard .ASC file extensions were replaced by .TXT, and the units for "Margin at spec. range" have been corrected from m to dB. File-save dialog was a considerable improvement on the old 16 bit one. Installer updated in 2005 because of false positives from AVG on the old one.Download
rfp110a.zip [96KB]Version 1.03 (June 24 1998)

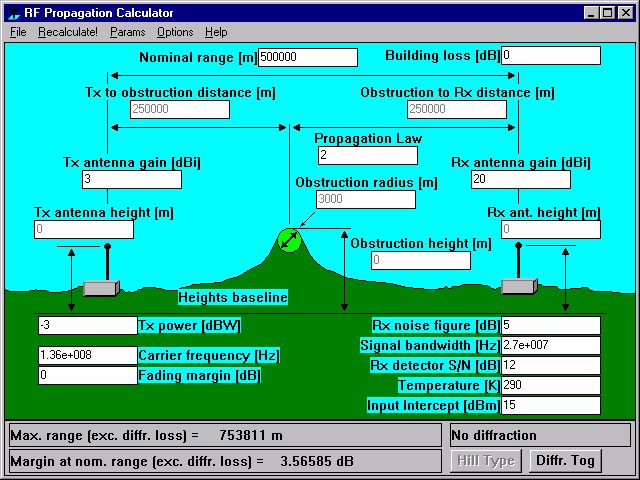

16 bit versionClick here for a screenshot
