Overview

New!  Agilent ESA-Series Spectrum Analyzers FLEXlm Crypt Generator  Online license key generator

You need to create the license file yourself, add in bogus license keys, then run the program from a CMD.EXE window.  Add the name of the license key file after it.

An example license file (license.lic) should have this format:

FEATURE 202 TMOMID01 1.0 permanent uncounted 0123456789AB HOSTID=E1234567

Where:

• FEATURE = Option Number  (i.e. 1D5 is Narrow RBW)
• 0123456789AB = License Key
• HOSTID = E1234567

The program will then calculate the proper keys and add them to the license.lic file.

I believe you can just drag the file to the EXE or something as well.  I did it from CMD.EXE window

Examples

Example with an Agilent E4402B with HOSTID=1301531D:

Create the file license.lic with Notepad or any another text editor.  Add the following to the file:

FEATURE 1DR TMOMID01 1.0 permanent uncounted 0123456789AB HOSTID=1301531D

Where 0123456789AB is just a bogus license key.

Save the file and close Notepad.

In a CMD.EXE window run:

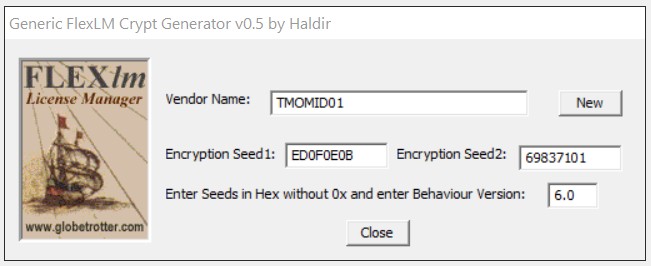

C:\> lmcryptgui.exe # Enter the Vendor Name: TMOMID01 # Enter Encryption Seed1: ED0F0E0B # Enter Encryption Seed2: 69837101 # Enter Behaviour Version: 6.0 # Click New then click Close # Next, run the new EXE: C:\> lmcryptTMOMID01.exe license.lic

Reopen license.lic in Notepad:

FEATURE 1DR TMOMID01 1.0 permanent uncounted FB2A3EE02016 HOSTID=1301531D

Where the license key for option 1DR is: FB2A3EE02016

Example #1 - An Agilent E4402B with HOSTID=1301531D now has the option 1DR with a license key of: FB2A3EE02016

Example #2 - An Agilent E4402B with HOSTID=1301531D now has the option 1D5 with a license key of: D86C61035EF7

Agilent E440X Options 049 Color Display 060 Low Emission 106 Bluetooth FM Demodulation 120 ACPR Dynamic Range Extension 219 Noise Figure Measurement Personality and Hardware (Disk #1, Disk #2, Install Notes) 225 Distance to Fault Measurement Personality 226 Phase Noise Measurement Personality (226_B0131.zip) 227 Cable TV Measurement Personality (227_A0208.zip) 228 Bluetooth Measurement Personality 229 Modulation Analysis 230 Benchlink Web Remote Control Software 231 ESA to 89600 Series Software Link Utility 252 EDGE Upgrade GSM to Personality 266 8566 Series Programming Code Compatibility 290 8590 Series Programming Code Compatibility 304 Bluetooth Premium Bundle 1AX RS-232 and Parallel Interface 1D5 High Stability Frequency Reference (Requires serial number 4421+ or later and firmware version A.14.00 or later.) 1D6 Time-Gated Spectrum Analysis (No additional hardware or software required) 1D7 50 to 75 Ohm Matching Pad 1DN 50 Ohm Tracking Generator 1DR Narrow Resolution Bandwidths (No additional hardware or software required) 1DS RF Preamplifier A4H GPIB and Parallel Interface A4J IF, Video and Sweep Ports AYQ FM Demod / Quasi Peak Detector AYX Fast Time Domain Sweeps AYZ External Mixing B70 Benchlink Spectrum Analyzer B72 Enhanced Memory BAA FM Demodulation BAH GSM Measurement Personality B7B TV Trigger and Picture-On-Screen J35 FM Deviation (J35_J36_B0102.zip) J36 Flexible FM Deviation (J36_A0101.zip) UKB Low Frequency Extension (Some may require additional hardware)

Real-World Working Examples

HOSTID=2FC6C709
060 BA76AABEAB9C
219 D5E7A0B49AA0
226 EA54EAD6BB90
1D5 8005F20ADB0E
1D6 5F2B132BE509
1DR A3C3CFE79D2D
BAA B4FAD88C7A28
B7B C68FABBB52F5

HOSTID=AC73B50A
106 C4B203FB620D
219 7848ECC84318
227 3AC3F3D75E0B
228 45ADE8CC4816
229 48A7E5C94219
AYQ A295FF1B2B2B
1D6 C2C847478E61

HOSTID=2FC6C709
225 0B2EC9B5B195
227 E952EBD7B593
A4H 77C9B5AD7947
AYX 5B4FCA7EB8F8
1DS A2C1D0E89730

HOSTID=2110A131
AYQ 4E8B53B7D02D

HOSTID=DE229E3E
1D6  0D06A4A1C576
1DR  31BE807D7D9A
1DS  14D89D9A779D
219  9314C9AAB6F1
225  578FB697D1E2
226  5299BB9CDBDD

HOSTID=6AD22ACE
1D6 842EE85DBD6E
1DN BCBEB0254DA6
1DR A8E6C4397592
226 BD77AF089395
219 6BB27DD66EA9

HOSTID=DE229E3E
227 5593B899D5E0
229 4397CAABB9EE
252 B63DAA03CCE8
BAC B2A883845AB7
BAH B99A7C7D4CBE

HOSTID=ED47F876
1D7 81E4A5AD98B8
B7B 12A3705847E5
B7K 3D6D452D31F0
BAA 00C0B1A52F18

HOSTID=1332C613
219 02458851063E
225 4FA88126218F
226 4EAE82272B8A
229 3BB0953A099B
304 D501733C252F
B70 E3F5814E1A25
1D7 A767AC9D4F66
AYX A714929B24F6
AYZ A518949D28F4
A4H BDC74D1EA961
AYQ BE027B842EF1

HOSTID=718002B1
1DR 28666F68E30F
1DS 27647069DD12
1D5 05A8928B21F0
226 51F8722F0192
UKB AEE3A6A3C0BE
1D6 04AE938C2BEB
