LEDR SNMP Handbook  This handbook describes the Simple Network Management Protocol (SNMP) agent for use with LEDR series radios such as the LEDR 400x, 900x and 1400x.  Although this version is a preliminary offering, it replaces the former Rev. A version.  (05-3532A01-B)

LEDR2 Retuning Instructions  Contains steps for retuning the operating frequency of a LEDR II radio.  (05-3633A01-A)

LEDR2 Filter Upgrade Instructions  Instructions for replacing the filters in LEDR radios in order to change the data rate.  This data is referenced in some early (pre-October 2000) versions of the manual and is included in the current LEDR manual.  (05-3691A01-A)

LEDR C/I Curves  Whitepaper on carrier-to-interference curves for LEDR Series.  (05-3638A01-A)

LEDR Radio Manual (400S/F, 700S, 900S/F, 1400S/F)  Installation and operating instructions for all LEDR II Series radios, including protected/redundant versions.  (Rev. F, 05-3627A01)  (Rev. C, Rev. D)

LEDR Network Configuration Instructions  Network configuration instructions for the LEDR transceiver.  This document is intended for use with the main product manual.  (05-4738A01-A)

LEDR Interleave Setting  Interleaving is a digital algorithm that allows Forward Error Correction (FEC) to better handle bursts of noise.  This instruction sheet discusses how interleaving can be used to improve operation of LEDR radios.  (ATT1274-03)

Software/Firmware Installation Guide  Instructions for installing new software/firmware files in GE MDS radios.  (05-3496A01)

LEDR Software Policy  (PB-0603)

Product Bulletin: Hardware/Firmware Compatibility Issues on LEDR II Radios with E1/T1 Option Board Installed  Radios covered by this bulletin do not need to be returned to the factory to restore proper operation.  (PB-0605)

Product Bulletin: LEDR 400, 700, 900 & 1400 End-of-Service Notification  (PB-18002)

LEDR LEDR Series Brochure

Upgrading LEDR Firmware  LEDR Series Installation & Operation Guide - Rev. C

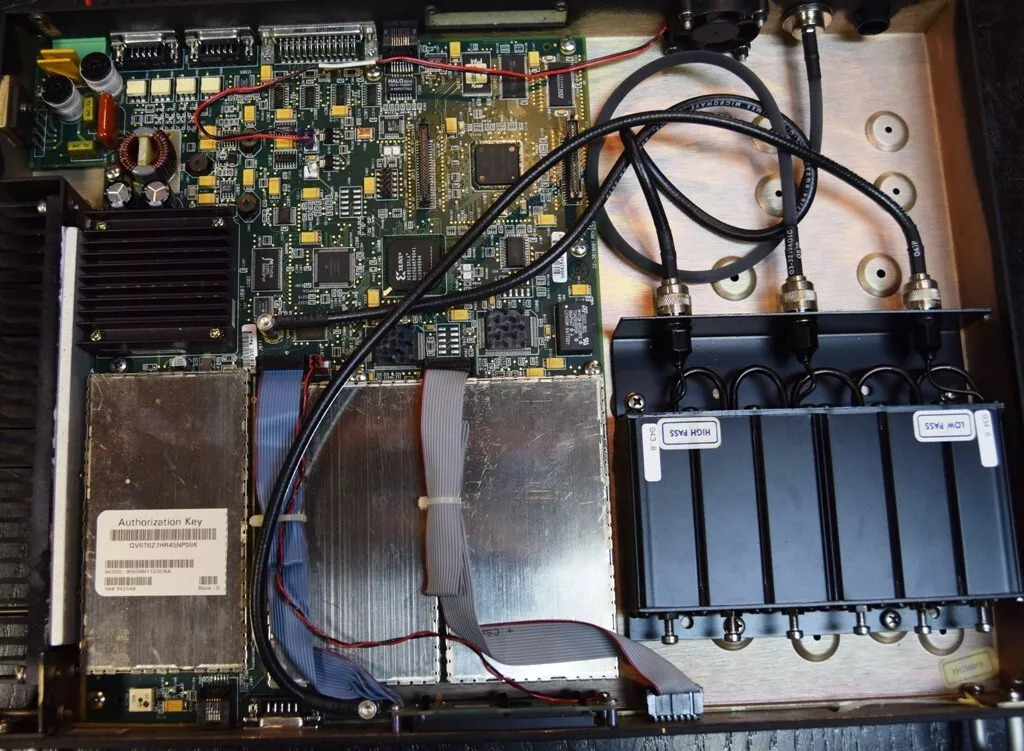

Internal Photos

Software/Firmware Downloads

This is the download site for the LEDR2 point-to-point microwave radio software.

Fullrate - Contains software and supporting material for the fullrate LEDR offering.

Standard - Contains software and supporting material for the standard LEDR product offering.

Fullrate

Version 1.0.3

This directory contains the files necessary to upgrade LEDR software to function with multiple E1 operation.
***************************************************************************
!!! NOTE !!!
The files in this directory are intended as a patch onto the LEDR code base. They include only the necessary files to make a LEDR radio E1 capable.
For all other files please download the original LEDR code into the radio before applying this patch.
***************************************************************************
The file "LEDR_full_rate_version 103.zip" contains the following files: E1_103.mpk - The binary image which is to be loaded into the LEDR radio using the serial FlashUtil program or
over a network connection using TFTP. Please see the release notes for the full LEDR software package for additional information concerning the software upgrade process.
Release Notes for Full Rate E1 LEDR Update.doc - The release notes detailing new features and modifications to the software.

Version 1.0.4

This directory contains the files necessary to upgrade LEDR software to function with multiple E1 operation.
The file "LEDR_full_rate_version 104.zip" contains the following files: E1_104.mpk - The binary image which is to be loaded into the LEDR radio using the serial FlashUtil program or
over a network connection using TFTP. Please see the release notes for the full LEDR software package for additional information concerning the software upgrade process.
Release Notes for Full Rate E1 LEDR Update.doc - The release notes detailing new features and modifications to the software.

Version 6.3.4

This directory contains version 6.3.4 for the LEDR2 Point-to-Point Microwave Radio.
The file ledr_version634.zip contains the following files: ledr.mpk - The binary executable which is to be loaded into the LEDR radio using the serial FlashUtil program or
over a network connection using TFTP. Please see the release notes or the FirmwareUpgrade.txt file for additional information concerning the software upgrade process.
ledrroot.mib - The first SNMP MIB to included when using SNMPc ledr.mib - The first SNMP MIB to include when using an SNMP manager other than SNMPc.
commonledr.mib - The second SNMP MIB to include. ledrredundant.mib - The third SNMP MIB to include. ledrsubrate.mib - The fourth SNMP MIB to include.
ledrframede1t1.mib - The fifth SNMP MIB to include. readme_mibs.txt - Information about the order to include the SNMP MIBs.
ReleaseNotes.doc - The release notes detailing new features and modifications to the software.
