National bla08aab Package

8L MICROSMD, 1.51 x 1.51 x 0.94mm body size

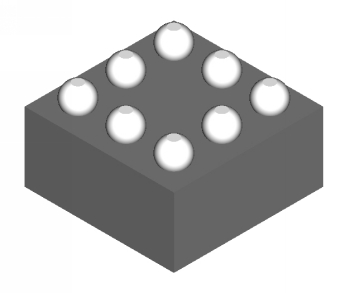

Note: Lead count on this 3D picture may be different. This picture depicts the package type.

Contents

Dimensions Packaging Mechanical Drawing MICROSMD Selection Guide

Body Size
	Wide Nom.:	1.51	mm
	Long Nom.:	1.51	mm
	Thickness:	0.94	mm

Lead Frame
	Material:	N/A
	Lead Finish:	N/A
	Pitch:	0.5	mm

Packaging Mechanical Drawing

bla08aab Mechanical Drawing (84 Kbytes)
View Online
Download
Receive via Email

[Information as of 11-Sep-2003]
