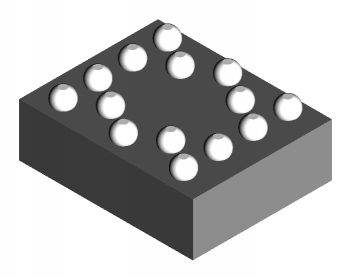

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 2.10 | mm | |
| Long Nom.: | 2.40 | mm | |
| Thickness: | 0.94 | mm | |
| Lead Frame | |||
| Material: | N/A | ||
| Lead Finish: | N/A | ||
| Pitch: | 0.5 | mm | |
| blp14ehb Mechanical Drawing (90 Kbytes) |  View Online |
