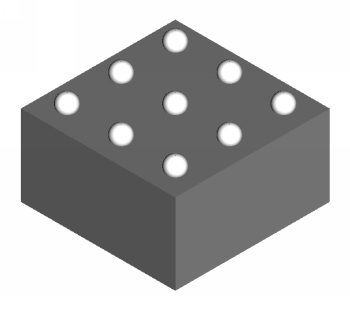

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 1.34 | mm | |
| Long Nom.: | 1.36 | mm | |
| Thickness: | 0.85 | mm | |
| Lead Frame | |||
| Material: | N/A | ||
| Lead Finish: | N/A | ||
| Pitch: | 0.5 | mm | |
| bpa09cdb Mechanical Drawing (92 Kbytes) |  View Online |
