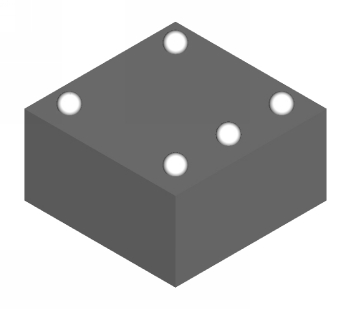

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 1.56 | mm | |
| Long Nom.: | 1.61 | mm | |
| Thickness: | 0.85 | mm | |
| Lead Frame | |||
| Material: | NA | ||
| Lead Finish: | NA | ||
| Pitch: | 1 | mm | |
| bpd05mpb Mechanical Drawing (90 Kbytes) |  View Online |
 Download |
 Receive via Email |
 |
