National ea32e Package Folder: 32L LCC, 0.42 x 0.42 x 0.10inch body size

National ea32e Package

32L LCC, 0.42 x 0.42 x 0.10inch body size

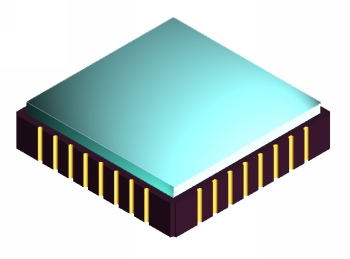

Note: Lead count on this 3D picture may be different. This picture depicts the package type.

Contents

Dimensions Packaging Mechanical Drawing LCC Selection Guide

Body Size
	Wide Nom.:	0.42	in
	Long Nom.:	0.42	in
	Thickness:	0.10	in

Lead Frame
	Material:	N/A
	Lead Finish:	Gold
	Pitch:	.040	in

Packaging Mechanical Drawing

ea32e Mechanical Drawing (55 Kbytes)
View Online
Download
Receive via Email

[Information as of 21-Aug-2003]
