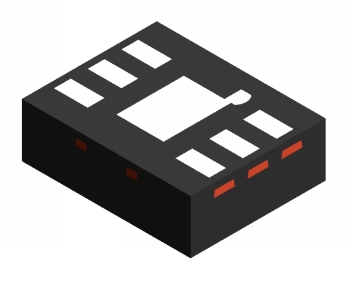

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
|
JEDEC Spec: Plastic LLP D 8 COPP
|
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 2.50 | mm | |
| Long Nom.: | 2.00 | mm | |
| Thickness: | 0.80 | mm | |
| Lead Frame | |||
| Material: | COPPER | ||
| Lead Finish: | SN/PB | ||
| Pitch: | 0.5 | mm | |
| lda06a Mechanical Drawing (37 Kbytes) |  View Online |
