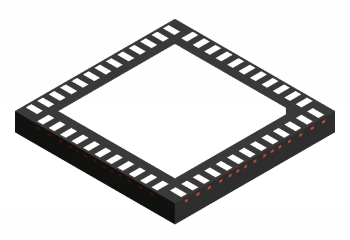

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
|
JEDEC Spec: Plastic LLP B 52 COP
|
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 7.00 | mm | |
| Long Nom.: | 7.00 | mm | |
| Thickness: | 0.80 | mm | |
| Lead Frame | |||
| Material: | C7025 | ||
| Lead Finish: | Sn/Pb | ||
| Pitch: | 0.5 | mm | |
| lqa48b Mechanical Drawing (66 Kbytes) |  View Online |
 Download |
 Receive via Email |
 |
