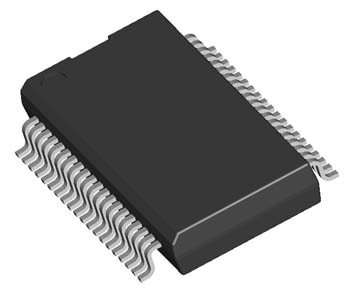

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 296.00 | mm | |
| Long Nom.: | 606.00 | mm | |
| Thickness: | 95.00 | mm | |
| Lead Frame | |||
| Material: | COPPER | ||
| Lead Finish: | 85/15 Sn/Pb | ||
| Pitch: | 30 | mm | |
| m40a Mechanical Drawing (27 Kbytes) |  View Online |
