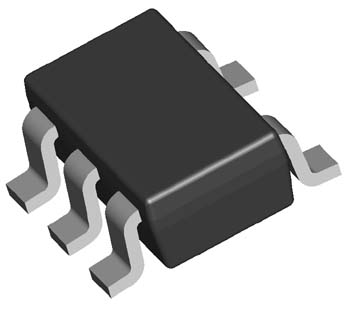

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 65.00 | mm | |
| Long Nom.: | 115.00 | mm | |
| Thickness: | 45.00 | mm | |
| Lead Frame | |||
| Material: | ALLOY 42 | ||
| Lead Finish: | 85/15 Sn/Pb | ||
| Pitch: | 37.5 | mm | |
| ma05a Mechanical Drawing (71 Kbytes) |  View Online |
