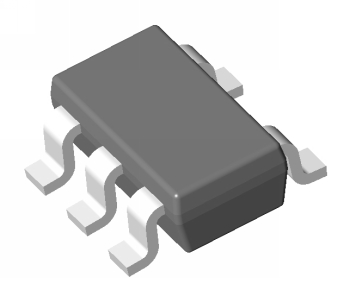

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
|
JEDEC Spec: MO-178-AA
|
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 63.00 | mm | |
| Long Nom.: | 115.00 | mm | |
| Thickness: | 40.00 | mm | |
| Lead Frame | |||
| Material: | COPPER | ||
| Lead Finish: | SN/PB | ||
| Pitch: | 37.5 | mm | |
| mf05a Mechanical Drawing (113 Kbytes) |  View Online |
 Download |
 Receive via Email |
 |
