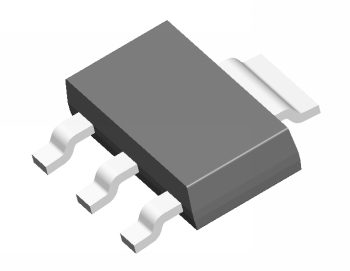

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
|
JEDEC Spec: TO-261-AA
|
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 3.56 | mm | |
| Long Nom.: | 6.50 | mm | |
| Thickness: | 1.60 | mm | |
| Lead Frame | |||
| Material: | Cu 151 | ||
| Lead Finish: | 85/15 Sn/Pb | ||
| Pitch: | 2.3 | mm | |
| mp04a Mechanical Drawing (90 Kbytes) |  View Online |
