National sdc10a Package Folder: 10L LLP, 4.00 x 4.00 x 0.80 body size

National sdc10a Package

10L LLP, 4.00 x 4.00 x 0.80 body size

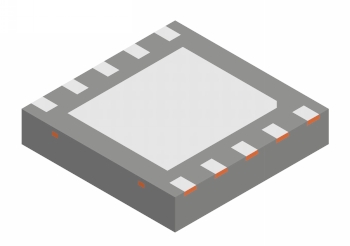

Note: Lead count on this 3D picture may be different. This picture depicts the package type.

Contents

Dimensions Packaging Mechanical Drawing LLP Selection Guide

Body Size
	Wide Nom.:	4.00	mm
	Long Nom.:	4.00	mm
	Thickness:	0.80	mm

Lead Frame
	Material:	COPPER
	Lead Finish:	SN/PB
	Pitch:	0.8	mm

Packaging Mechanical Drawing

sdc10a Mechanical Drawing (82 Kbytes)
View Online
Download
Receive via Email

[Information as of 10-Sep-2003]
