National sqa24a Package

24L LLP, 4.00 x 4.00 x 0.80mm body size

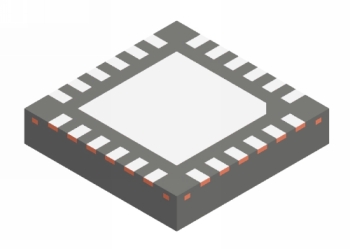

Note: Lead count on this 3D picture may be different. This picture depicts the package type.

Contents

Dimensions Packaging Mechanical Drawing LLP Selection Guide

Body Size
	Wide Nom.:	4.00	mm
	Long Nom.:	4.00	mm
	Thickness:	0.80	mm

Lead Frame
	Material:	COPPER
	Lead Finish:	Sn/ Pb
	Pitch:	0.5	mm

Packaging Mechanical Drawing

sqa24a Mechanical Drawing (81 Kbytes)
View Online
Download
Receive via Email

[Information as of 11-Sep-2003]
