National tpa04aaa Package

4L MICROSMD, 0.78 x 0.78 x 0.50mm body size

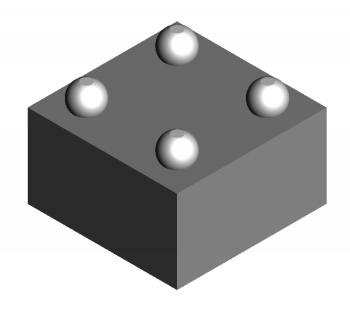

Note: Lead count on this 3D picture may be different. This picture depicts the package type.

Contents

Dimensions Packaging Mechanical Drawing MICROSMD Selection Guide

Body Size
	Wide Nom.:	0.78	mm
	Long Nom.:	0.78	mm
	Thickness:	0.50	mm

Lead Frame
	Material:	N/A
	Lead Finish:	N/A
	Pitch:	0.5	mm

Packaging Mechanical Drawing

tpa04aaa Mechanical Drawing (113 Kbytes)
View Online
Download
Receive via Email

[Information as of 11-Sep-2003]
