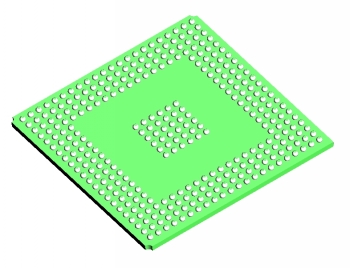

| Note: Lead count on this 3D picture may be different. This picture depicts the package type. |
|
JEDEC Spec: Plastic TEPBGA A 388
|
| Body Size | |||
|---|---|---|---|
| Wide Nom.: | 23.00 | mm | |
| Long Nom.: | 23.00 | mm | |
| Thickness: | 2.28 | mm | |
| Lead Frame | |||
| Material: | BT EPOXY | ||
| Lead Finish: | Sn/Pb | ||
| Pitch: | 1 | mm | |
| ufj324a Mechanical Drawing (63 Kbytes) |  View Online |
 Download |
 Receive via Email |
 |
