National vbg48a Package

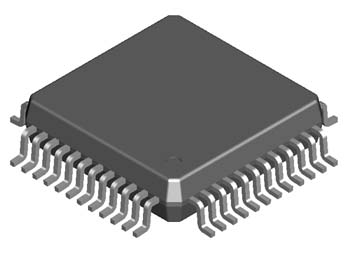

48L LQFP, 7.00 x 7.00 x 1.40mm body size

Note: Lead count on this 3D picture may be different. This picture depicts the package type.

Contents

Dimensions Packaging Mechanical Drawing LQFP Selection Guide

Body Size
	Wide Nom.:	7.00	mm
	Long Nom.:	7.00	mm
	Thickness:	1.40	mm

Lead Frame
	Material:	COPPER
	Lead Finish:	N/A
	Pitch:	0.5	mm

Packaging Mechanical Drawing

vbg48a Mechanical Drawing (32 Kbytes)
