National mf03a Package Folder: 3L SOT-23, 0.12 x 0.05 x 0.04inch body size

National mf03a Package

3L SOT-23, 0.12 x 0.05 x 0.04inch body size

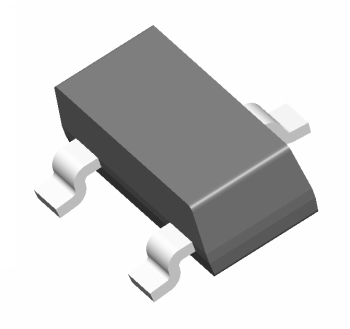

Note: Lead count on this 3D picture may be different. This picture depicts the package type.

Contents

Dimensions Packaging Mechanical Drawing SOT-23 Selection Guide

Body Size
	Wide Nom.:	0.12	in
	Long Nom.:	0.05	in
	Thickness:	0.04	in

Lead Frame
	Material:	CU A194
	Lead Finish:	SN/PB
	Pitch:	0.075	in

Packaging Mechanical Drawing

mf03a Mechanical Drawing (90 Kbytes)
View Online
Download
Receive via Email

[Information as of 21-Aug-2003]
